Revolutionizing Power Transmission for Aerospace & Advanced Mobility
The Orbicular Gear Mechanism (OGM)
20% Lighter, More Torque-Dense, Patented & Proven.
Problem
Rethinking Planetary Gear Design
Planetary gear systems—also known as epicyclic units—are vital to modern drivetrain technology. Their ability to deliver high torque in a compact footprint, while supporting multiple speed and load paths, makes them indispensable in automotive, aerospace, and industrial machinery.
Traditionally, planetary systems are built using external and internal cylindrical gears in a sun-ring-planet configuration. While effective, these systems have limitations—especially when designers need to:
- Maximize the number of planet gears
- Optimize load sharing and contact ratios
- Fit complex transmissions into tighter spaces
Face gears, on the other hand, offer clear advantages in many of these areas. By enabling torque transmission between non-parallel, non-intersecting shafts—often in orthogonal configurations—face gears support compact, lightweight, and low-noise solutions. Their unique geometry improves alignment flexibility and allows for broader tooth engagement, distributing loads more evenly.
However, until now, face gears were mostly used in isolated gear pairs—not in complete planetary architectures.
Solution
Benefits of the OGM
|
Feature
|
Advantage
|
|---|---|
|
Higher Contact Ratio
|
Ensure smoother power transfer and lower vibration levels
|
|
Superior Load Distribution
|
Minimized localized stresses, extending gear life and operational reliabilty
|
|
Greater Planet Count Density
|
Allows more planets without increasing package size - Enhancing torque density
|
|
Design Freedom in Geometry
|
Support unconventional configurations beyond traditional sun-ring planet layouts
|
Our Breakthrough:The Orbicular Gear Mechanism
The Orbicular Gear Mechanism (OGM) is a novel, patented face-gear-based planetary system designed to overcome these fundamental challenges. By maximizing the number of planet gears relative to the reduction ratio, the OGM achieves unparalleled compactness and superior load distribution compared to traditional gearboxes. Its unique architecture, where the planet gears’ rotation axis is perpendicular to the gear mesh loads, redefines how centrifugal forces are managed, enabling robust high-speed mechanisms previously considered unfeasible.
This makes OGM a transformative alternative for a wide range of applications, transcending industry boundaries.
Superior Power Density & Weight Reduction
The OGM’s compact drivetrain architecture allows for a significant reduction in weight and size, creating a simplified and integrated lubrication system for optimum performance.
Modular, High-Durability Design
Easily mounted with low backlash, the system’s face gear pairs offer better durability and achieve higher contact ratios, significantly reducing Noise, Vibration, and Harshness (NVH).
High-Speed & Forgiving Alignment
Unlike traditional designs requiring micron-level precision, OGM sets do not need such stringent alignment, making them more practical to implement while performing reliably at high speeds.
Case Studies
Our engineering approach is not just theoretical; it is digitally validated. Each of our case studies features a fully developed digital prototype that has undergone rigorous analysis through kinematic and mechanical simulations using HyGEARS. The performance predictions are both robust and realistic. We are seeking partners to assist us in advancing the validation process to the physical prototype stage, supporting OEM-led research and development initiatives.

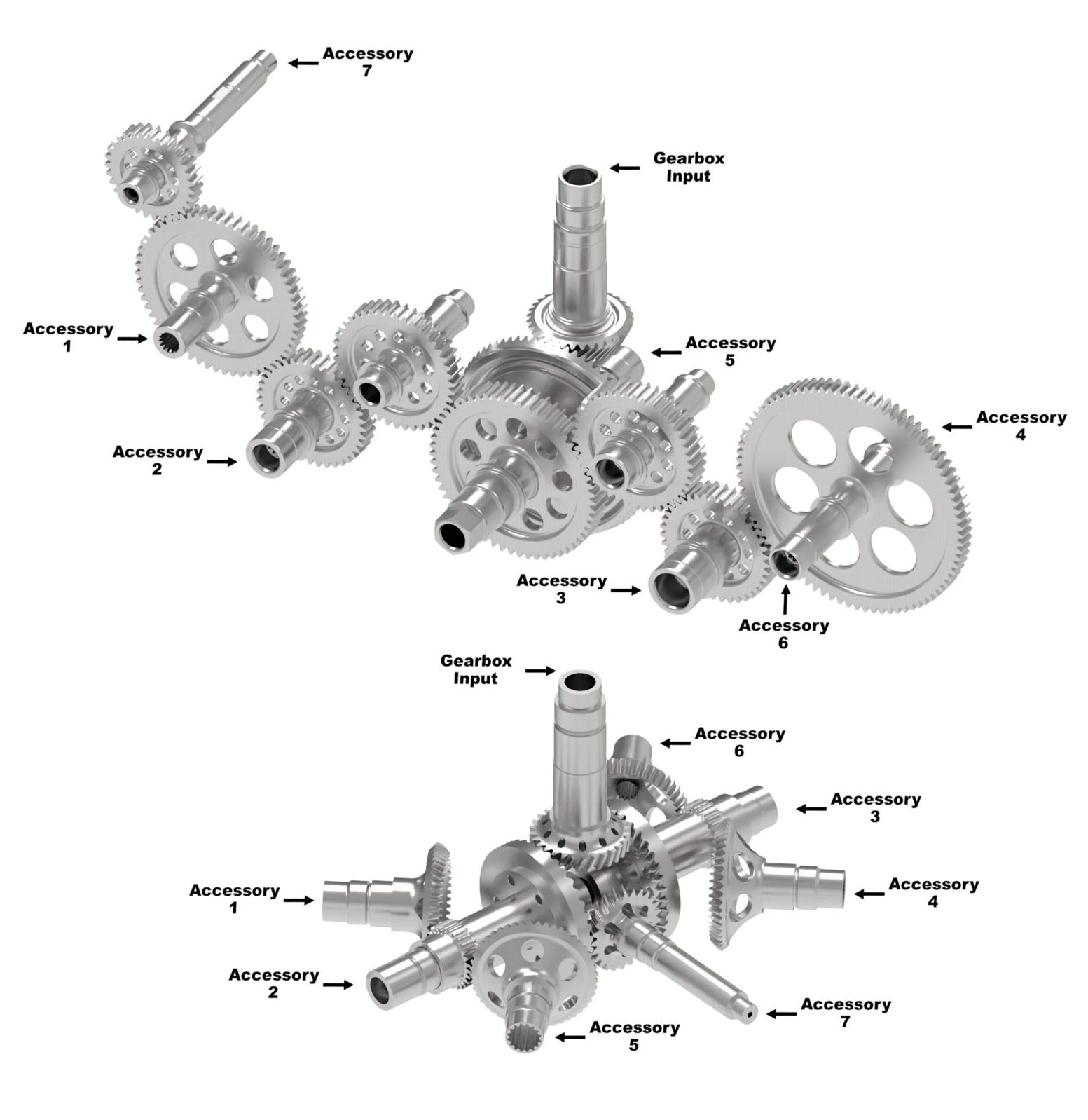

Key Achievements:
• 30% reduction in total weight through highly compacted gear geometry.
• Simplified lubrication system and improved load sharing for reduced wear.
• Maximized contact ratio, which improves reliability and component life.
• Enhanced packaging efficiency for seamless integration into tight engine bays.
Applications: Next-generation aircraft accessory systems.

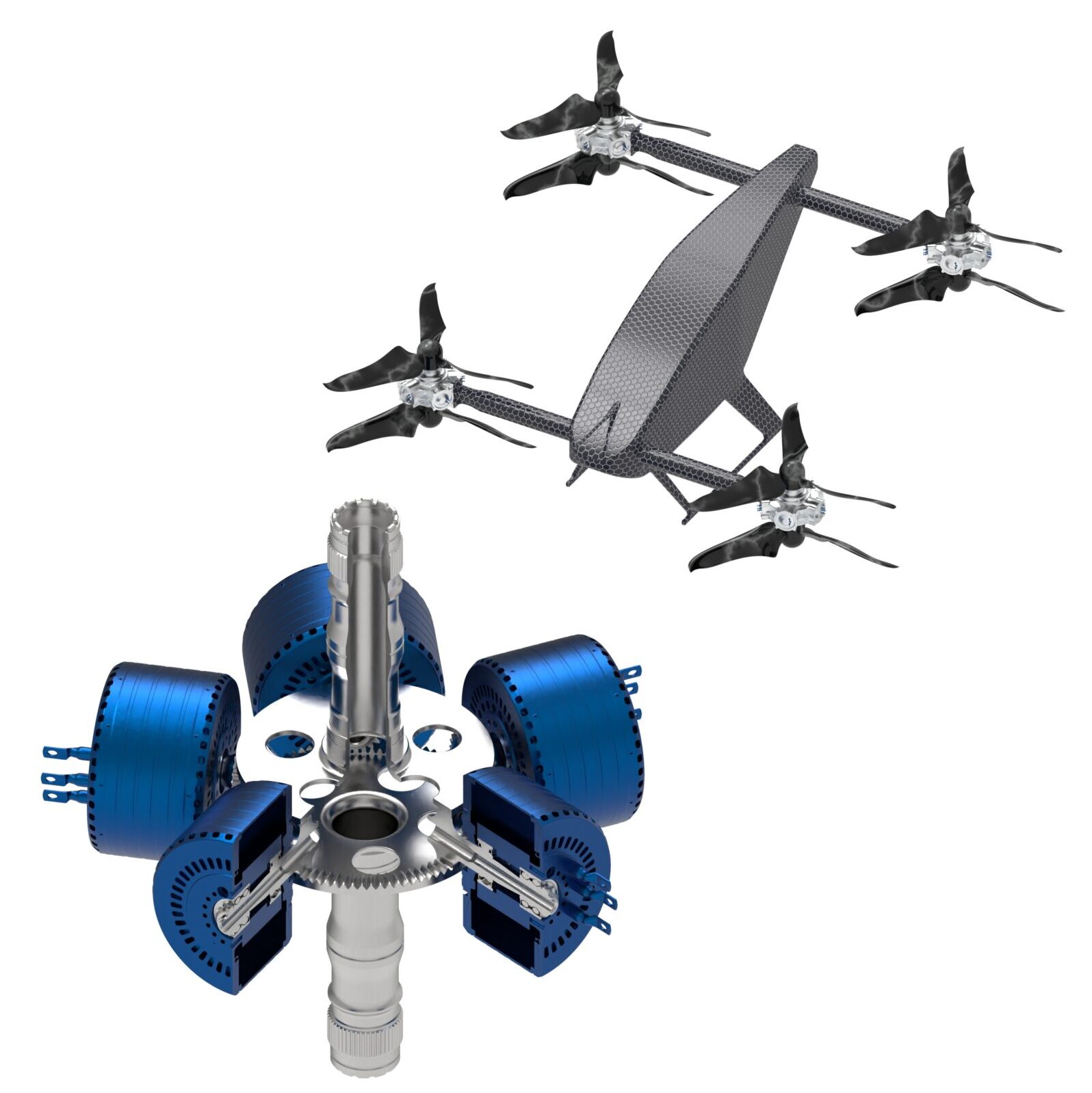

Key Achievements:
• Up to 20% reduction in powertrain weight, enabling longer range and greater payload.
• High torque delivery at low rotor speeds, ideal for large-diameter propellers.
• A compact, modular, and scalable architecture that simplifies integration.
• Reduced vibration (NVH) and extended gear life.
Applications: Electric Vertical Take-Off and Landing (eVTOL) aircraft.
Key Achievements:
• 15% lower circulating power in the planetary system.
• Enabled the use of larger planet gears, improving load distribution and service life.
• Superior NVH performance due to naturally high gear contact ratios.
• Eliminated the need for micron-level alignment, significantly cutting manufacturing costs
and complexity.
Applications: Commercial and military Geared Turbofan (GTF) engines.

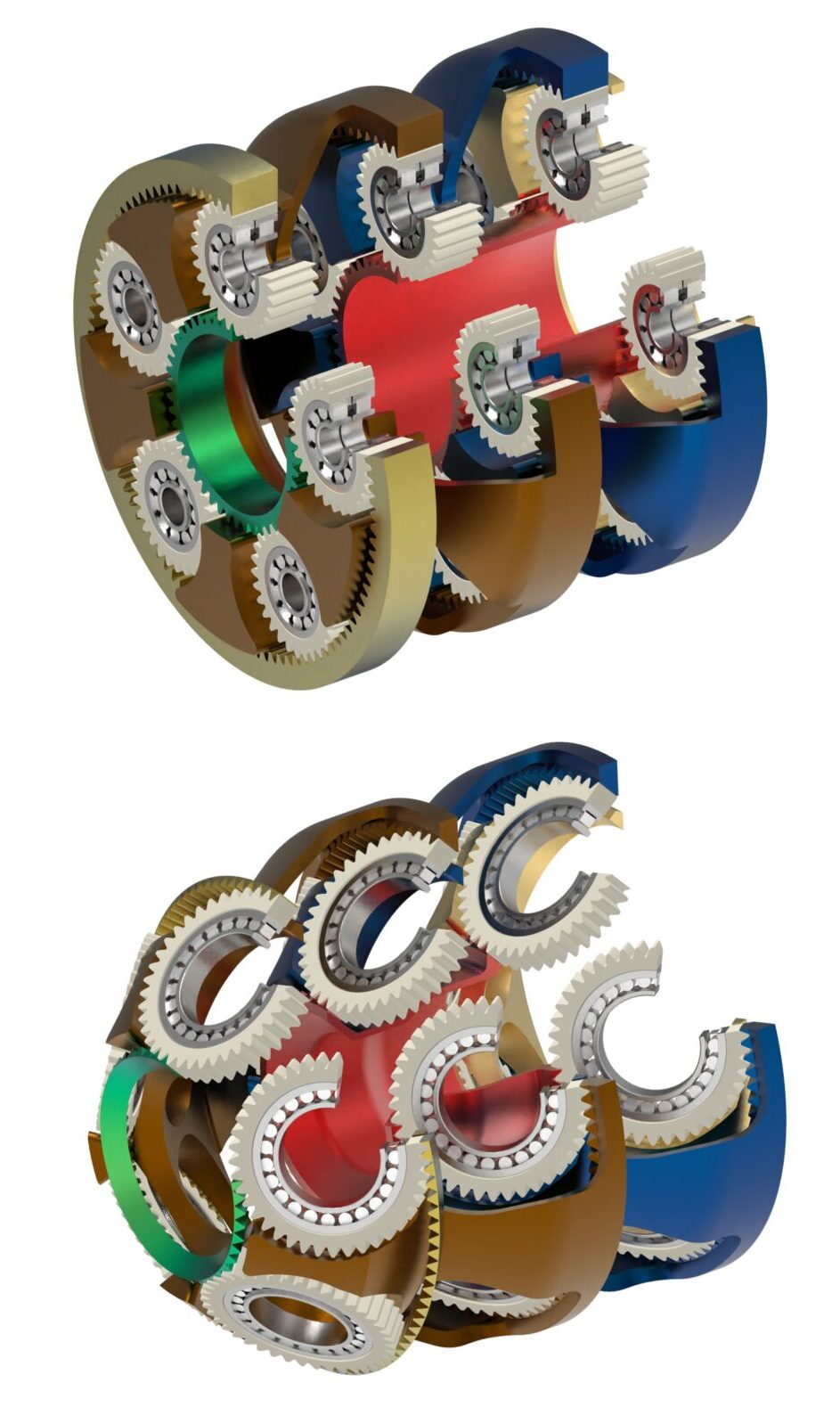

Key Achievements:
• Significantly increased torque-handling capacity.
• Reduced power circulation losses for greater overall efficiency.
• Achieved a lighter, weight-neutral design with simplified power flow.
• Ensured smoother gear shifts and superior NVH (Noise, Vibration, Harshness) performance.
Applications: Next-generation commercial, defense, off-road, and hybrid-electric vehicle platforms.
A Defensible & Protected Technology
Altivus’s core technology is protected by a robust international patent, with a positive search report from the international authority confirming its novelty and inventive step. This intellectual property forms the foundation of our business model. We operate as a deep-tech R&D lab, licensing our core OGM mechanism to partners. This allows you to build upon our proven foundation, with full ownership of your application-specific system IP, creating a powerful and defensible market advantage.
Patent No: WO/2025/048734
Status: Positive International Search Report (ISA/237) Received
Next Step: Canadian National Phase Entry Confirmed
The Mind Behind the Mechanism
Mert Vardar is a Mechanical Transmission Design Expert with over 15 years of specialized experience at the forefront of the aerospace and defense industries. As the inventor of the OGM, he has led multiple national-scale R&D projects, developing next-generation solutions for turbofan engine accessory gearboxes, helicopter main/tail drivetrains, and geared turbofan systems. His deep expertise is recognized through publications in leading industry journals and presentations at top-tier conferences, including AGMA, BGA, and VDI.
Partner With Us to Shape the Future of Motion
We are actively seeking strategic partners to accelerate the adoption of OGM technology across the aerospace, e-mobility, and advanced robotics sectors. Our partnership model is designed for low-risk integration and mutual success: we provide the core IP, validated design files, and technical consulting, while our partners retain control over production and ownership of their final system IP. Let’s start a conversation about solving your most demanding powertrain challenges.
We are seeking:
Strategic OEM & Tier 1 Partners: To co-develop and integrate tailored drivetrain solutions for next-generation aircraft and vehicles.
Royalty-Based Licensing Deals: To provide our core mechanism know-how and testing data, enabling partners to lead production with a unique technological edge.
Advisors & Early Technical Champions: To collaborate with trusted industry and academic experts who can guide licensing structures, certification pathways, and scale-up readiness.
